code	Prod. code	Description	Compat.	Modif.	Qty
1	7688261	CONNECTION			01
2	16043624	SCREW M8X25			01
2	16044224	SCREW M8X50			01
3	11193874	LOCK WASHER			02
4	5999294	SEAL GASKET			01
5	71714115	COLLAR			02
6	7730703	SLEEVE			01
7	11198371	LOCK WASHER			01
8	15970524	SCREW			01
9	7710984	PIPE	M1,M4,M7,M8	C1062	01
9	46403127	PIPE	M1,M4,M7,M8	D1062	01
9	7755529	PIPE	E025+(M1,M4,M7,M8)	C1062	01
9	46403180	PIPE	E025+(M1,M4,M7,M8)	D1062	01
9	7742080	PIPE	E007		01
9	7720260	PIPE	M2		01
9	7751071	PIPE	E025+(M2,M5)		01
9	7720260	PIPE	M5	C1311	01
9	7742080	PIPE	M5	D1311	01
10	11194074	LOCK WASHER		C6528	01
10	55189555	LOCK WASHER		D6528	01
11	16043324	SCREW			01
12	7693845	SLEEVE	M1,M4,M7,M8		01
12	7730866	SLEEVE	M2,M5		01
13	7699259	SLEEVE	M1,M4,M7,M8		01
14	71714114	COLLAR			02
15	71714114	COLLAR			02

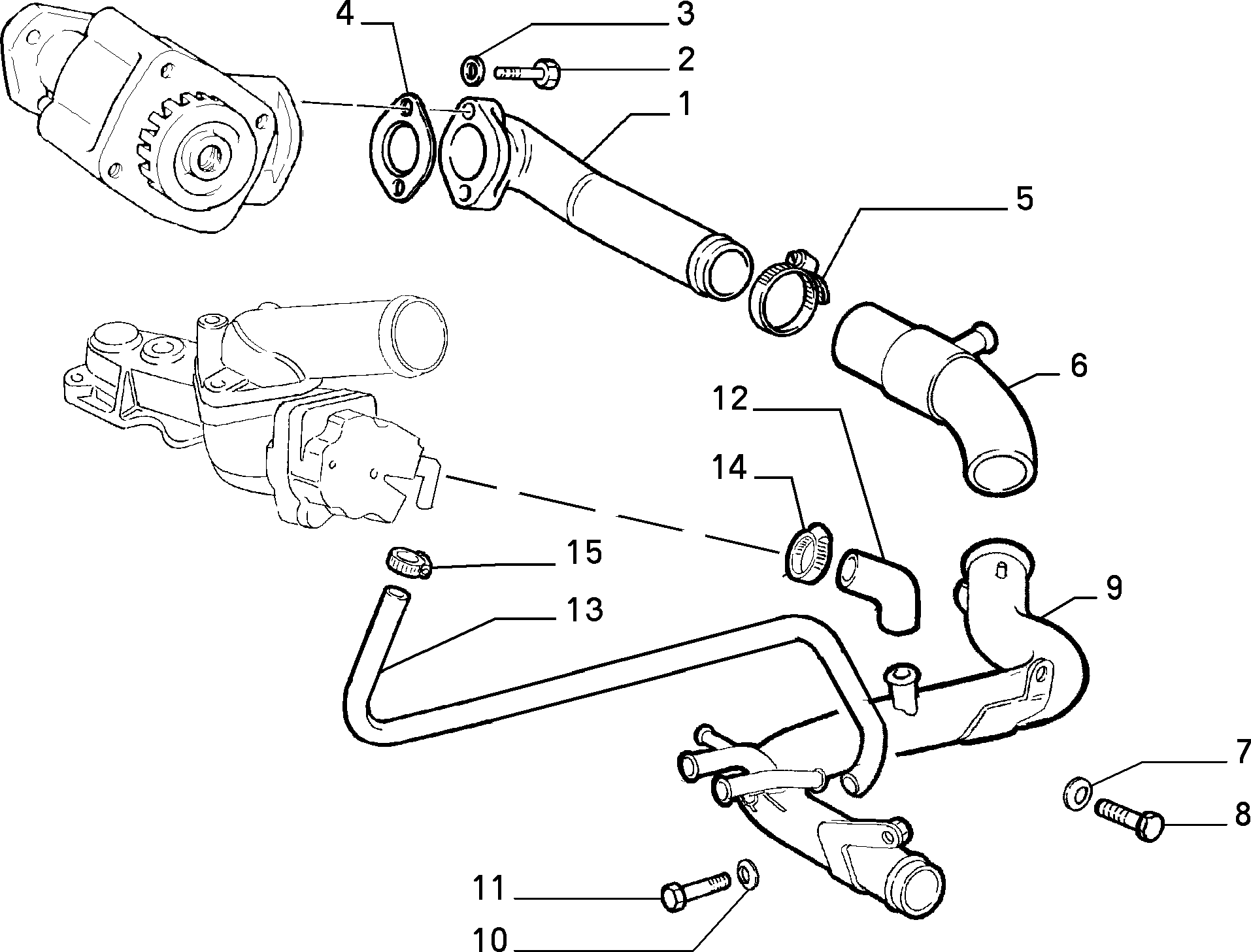

An image of parts — 10402/00 - WATER PUMP AND LINES (Var.:1/Rev.:0)
